doth2578-dlm-main-spring-oth2578-loading-dock-pro-parts

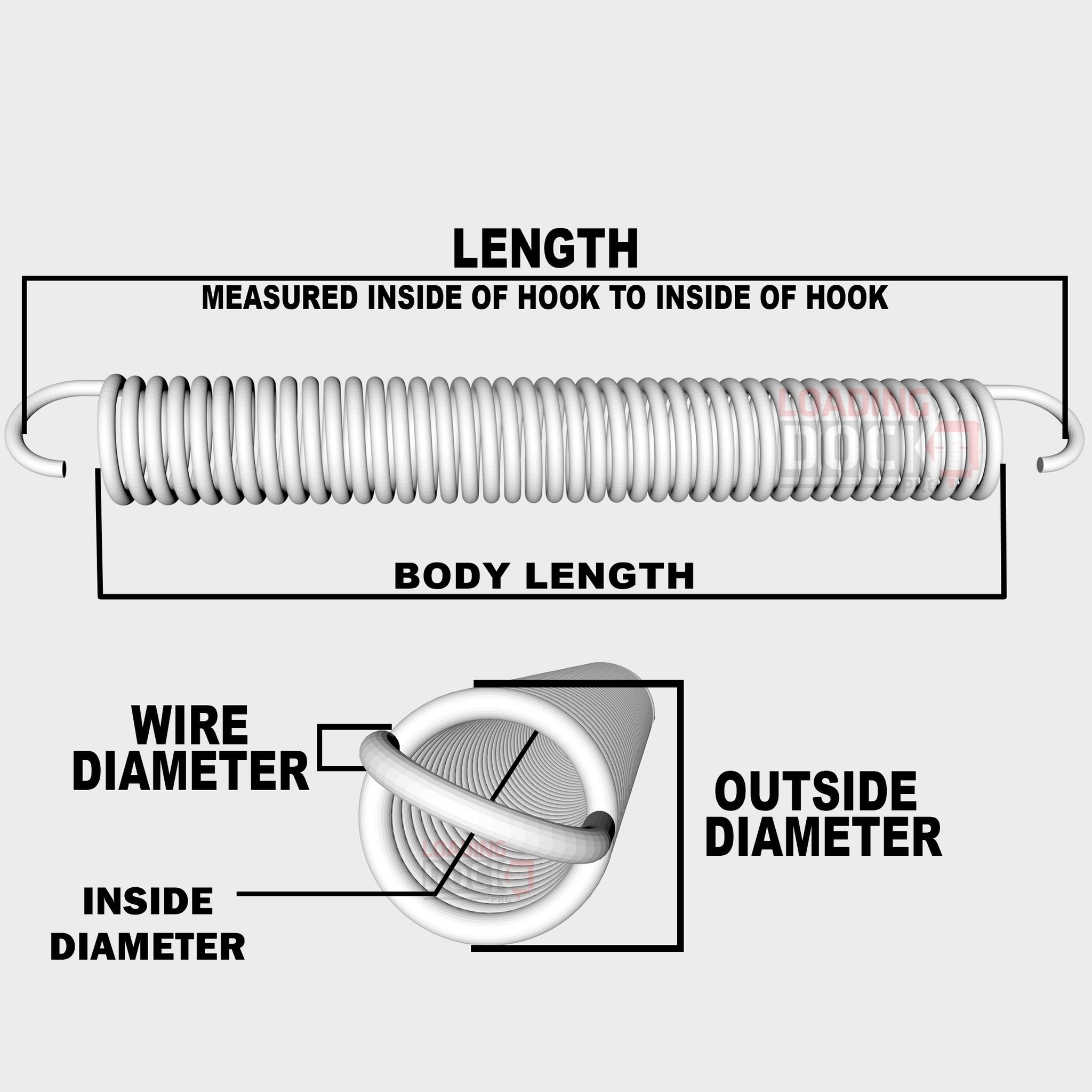

Spring Measurement Diagram

DOTH2578

DLM

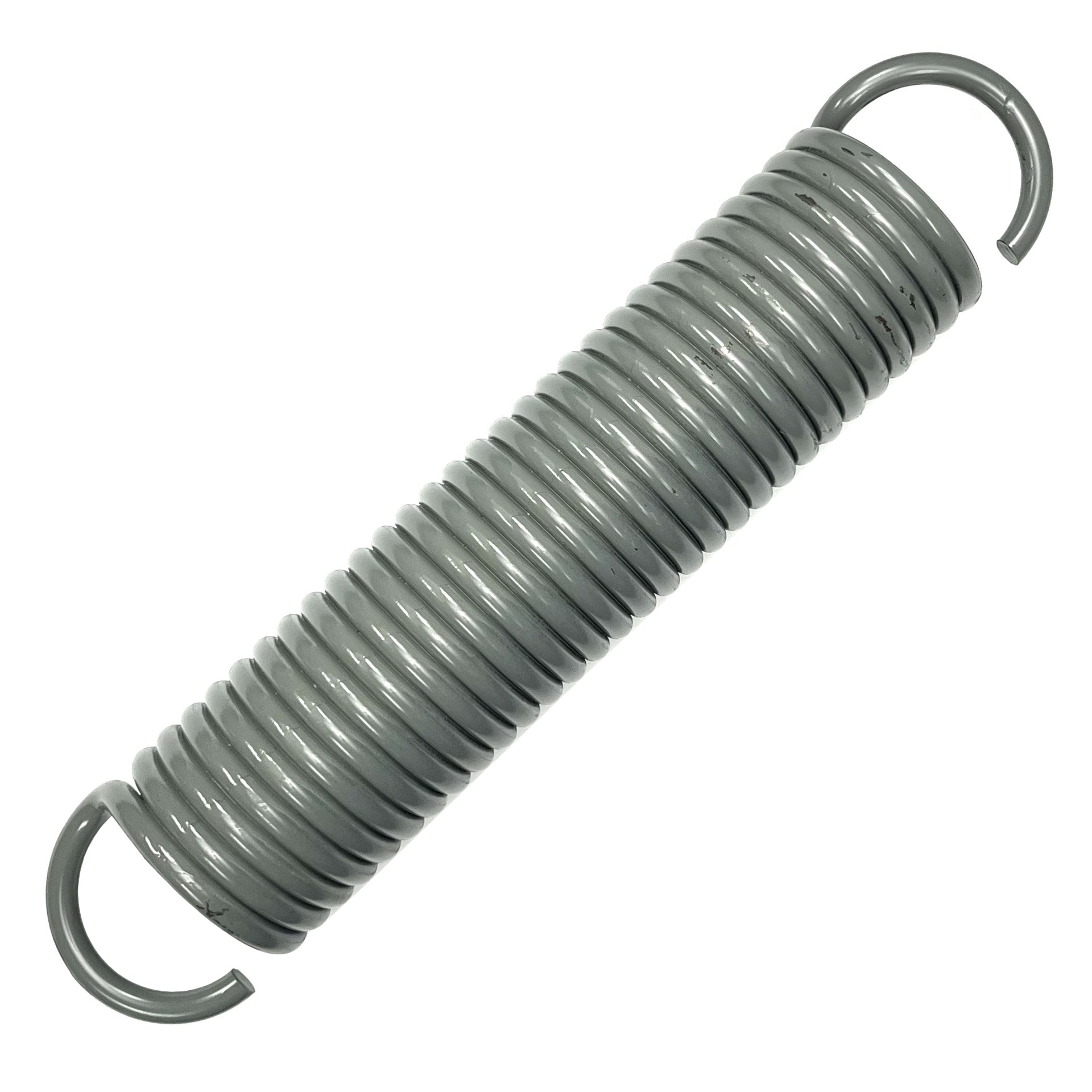

Main Spring (OTH2578)

24-1/8 inches total length

23 inside of hook to inside of hook length(see diagram picture)

18 inches body length

4-5/8 inches outside diameter

3-1/2 inches inside diameter

.595 inch wire diameter

30 coils
